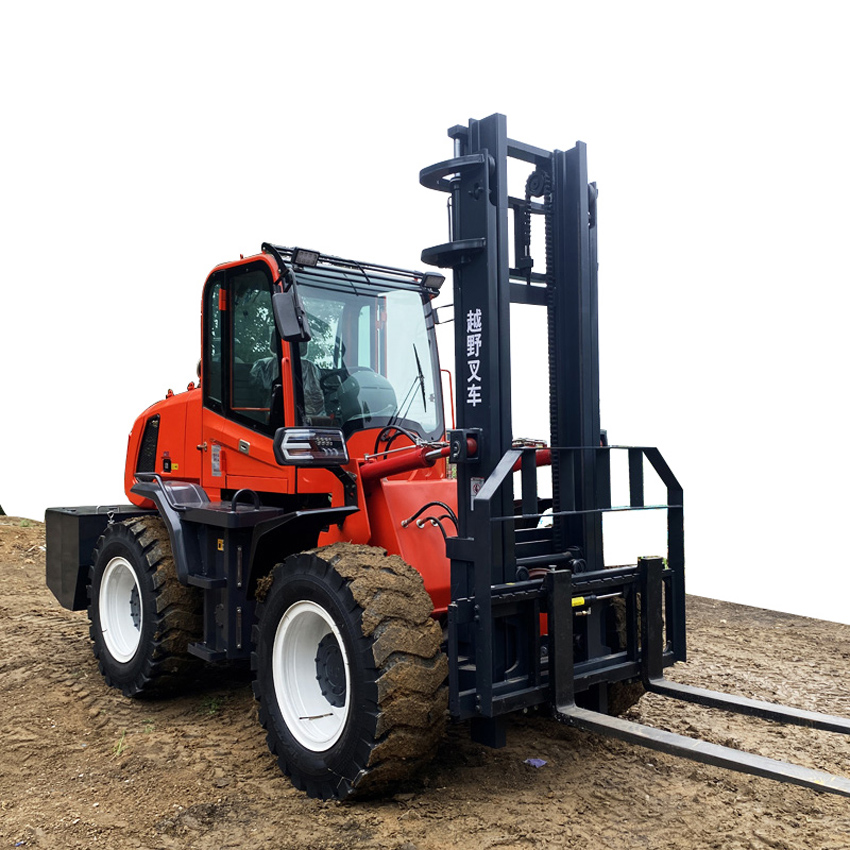

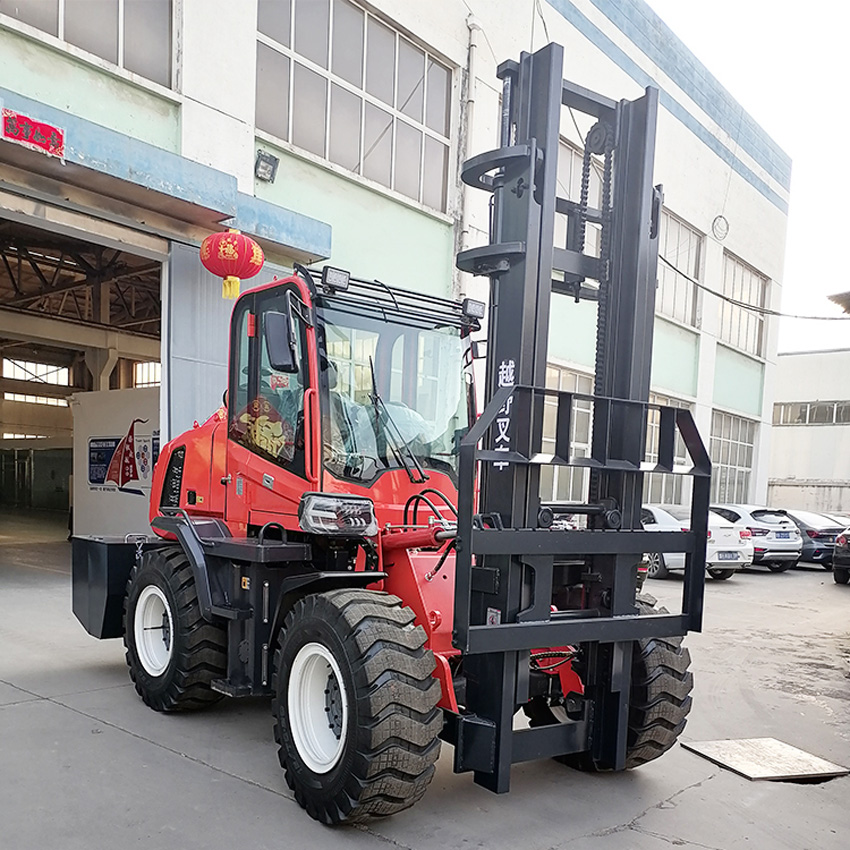

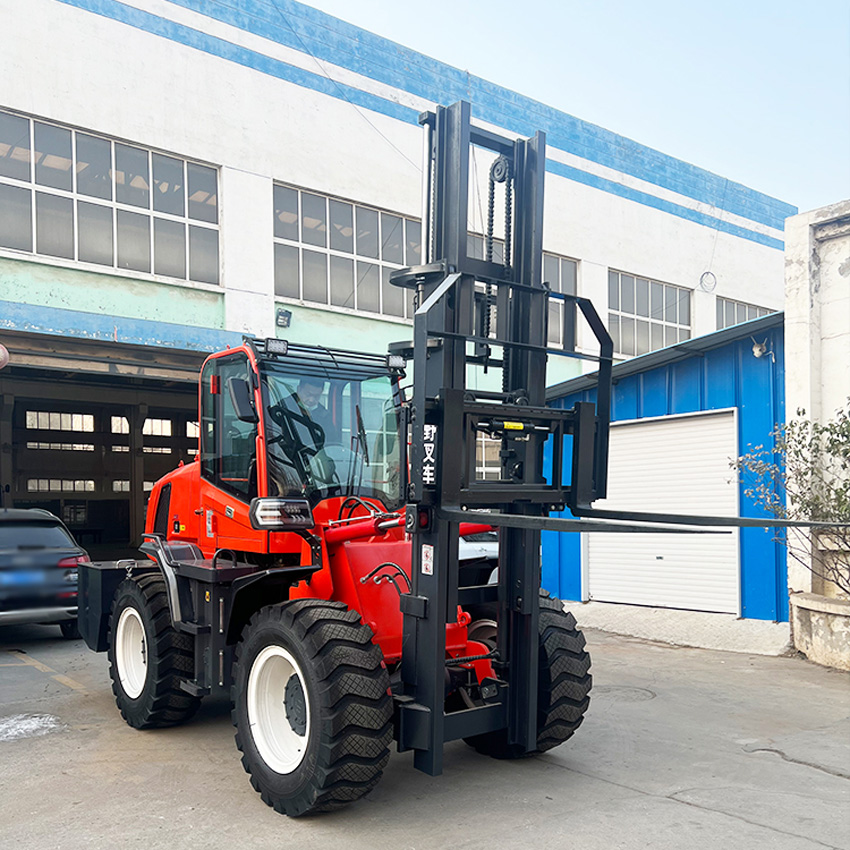

MINGYANG 3ton 5 Ton Rough Terrain Forklfits Lifting Equipment 4X4 Wheel Drive Rough Terrain Diesel Forklift With Cab

MINGYANG 3ton 5 Ton Rough Terrain Forklfits Lifting Equipment 4X4 Wheel Drive Rough Terrain Diesel Forklift With Cab

Name: MINGYANG 3ton 5 Ton Rough Terrain Forklfits Lifting Equipment 4X4 Wheel Drive Rough Terrain Diesel Forklift With Cab
Rating: 5.0 (21 reviews)

Quantity:




Inquire Add to Basket

Introduction

CE Euro5 EPA Forklift Manufacturer

Lifts 0.5ton to 12ton

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-0

Products Description

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-1

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-2

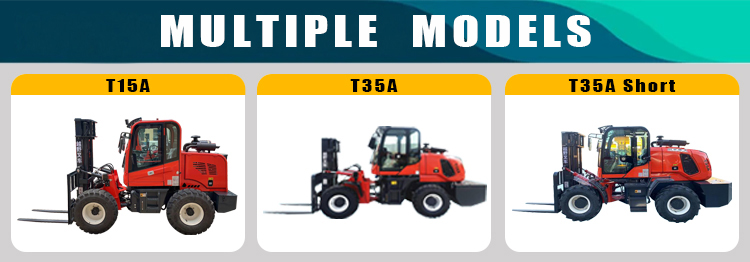

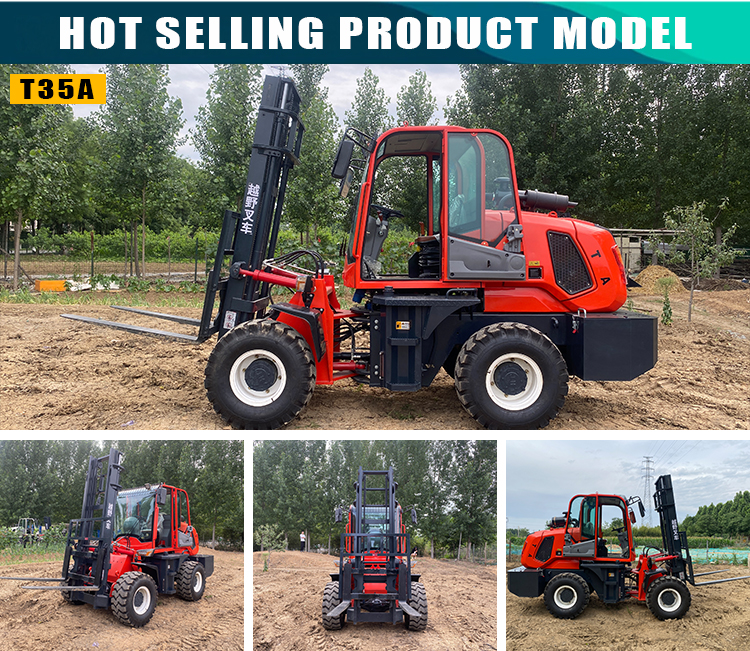

Model	T15A	T35A	T35A Short
Engine	Weifang490，40kw	Xichai/Yunnei493VP，36.8kw	Xichai/Yunnei493VP，36.8kw
Drive mode	4wd	4wd	4wd
Gearbox	265 torque converter	265 high low speed torque converter	265 high low speed torque converter
Axle	Isuzu	Wheel reduce	Wheel reduce
Tire	825-16	23.5/70-16	23.5/70-16
Wheelbase	1800mm	2200mm	1980mm
Rated lifting weight	1500kg	3500kg	3500kg
Rated lifting height	3000mm	3000-6000mm	3000-6000mm
Load center distance	500mm	600mm	600mm
Min. turning radius	2800mm	3500mm	3200mm
Max. climbing angle	≤35°	≤38°	≤38°
Min. ground clearance	250mm	350mm	350mm
Tilt of the mast,front/rear	10°/6°	10°/6°	10°/6°
Speed	30km/h	38km/h	38km/h
Max. hook traction	15Kn	25Kn	25Kn
Mast steel width	120mm	160mm	160mm
Fork length	1220mm	1220mm	1220mm
Machine weight	2800kg	4200kg	4200kg
Machine size	320016002300mm	420018502700mm	380018502300mm

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-3

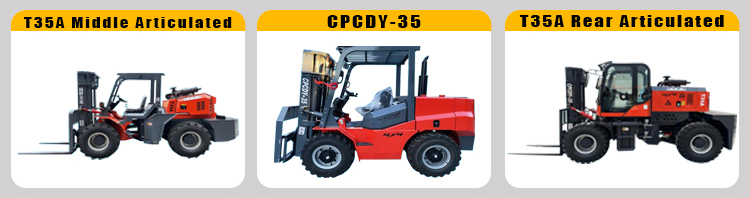

Model	T35A Middle Articulated	CPCDY-35	T35A Rear Articulated
Engine	Xichai/Yunnei493VP，36.8kw	Yunnei/Quanchai495，55kw	Xichai/Yunnei493VP，36.8kw
Drive mode	4wd	4wd	4wd
Gearbox	265 high low speed torque converter	280 high low speed torque converter	265 high low speed torque converter
Axle	Wheel reduce	Wheel reduce	Wheel reduce
Tire	23.5/70-16	12-16.5	23.5/70-16
Wheelbase	1980mm	1697mm	2300mm
Rated lifting weight	3500kg	3500kg	3500kg
Rated lifting height	3000-6000mm	3000-6000mm	3000-6000mm
Load center distance	600mm	600mm	600mm
Min. turning radius	3200mm	2500mm	3200mm
Max. climbing angle	≤38°	≤38°	≤38°
Min. ground clearance	350mm	320mm	350mm
Tilt of the mast,front/rear	10°/6°	10°/8°	10°/8°
Speed	38km/h	35km/h	38km/h
Max. hook traction	25Kn	30Kn	25Kn
Mast steel width	160mm	160mm	160mm
Fork length	1220mm	1220mm	1220mm
Machine weight	4200kg	5500kg	4500kg
Machine size	360018502150mm	320015002300mm	370018502350mm

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-4

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-5

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-6

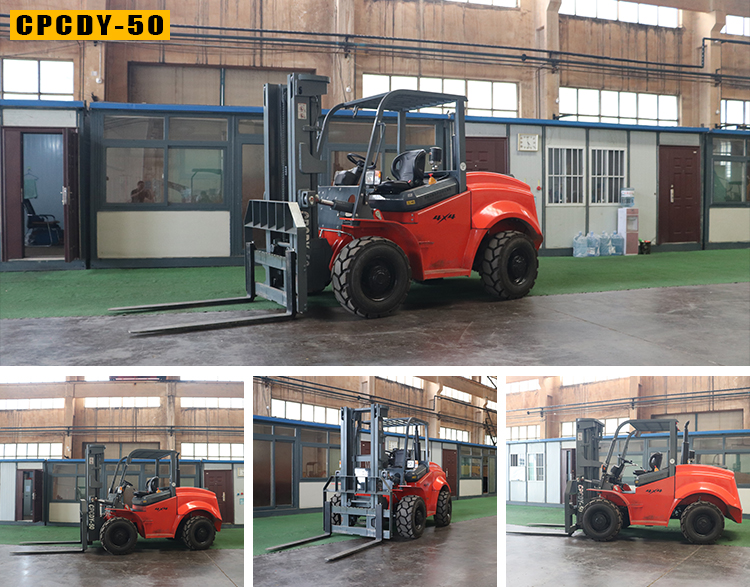

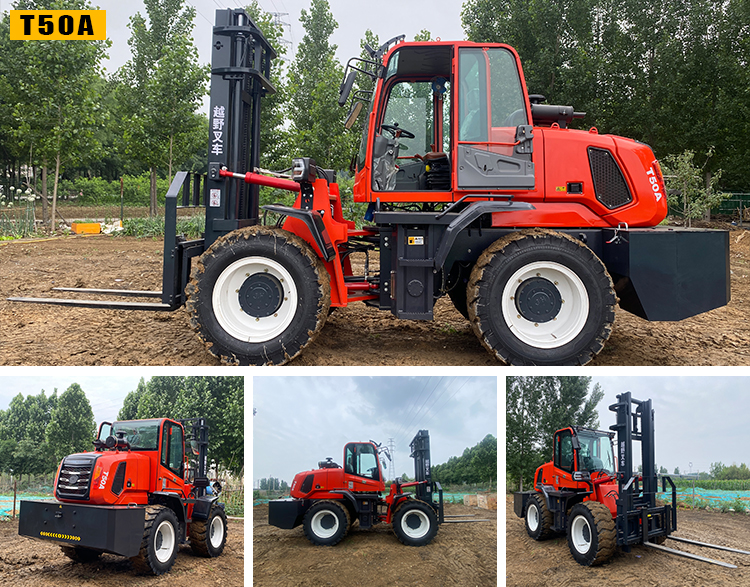

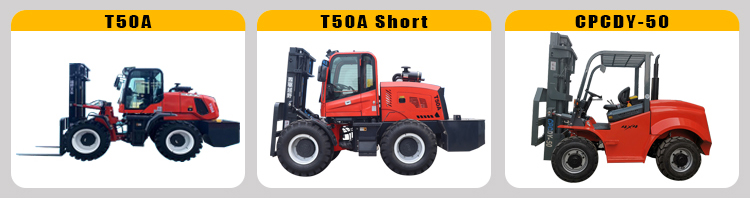

Model	T50A	T50A Short	CPCDY-50
Engine	Xichai/Yunnei4102，80-83kw	Huajie 4102	Yunnei4102，80kw
Drive mode	4wd	4wd	4wd
Gearbox	265 high low speed torque converter	265 high low speed torque converter	280 high low speed torque converter
Axle	Wheel reduce	Wheel reduce	Wheel reduce
Tire	16/70-24	16/70-20	12-16.5
Wheelbase	2400mm	19800mm	1890mm
Rated lifting weight	5000kg	5000kg	5000kg
Rated lifting height	4000-6000mm	3000-6000mm	3000-6000mm
Load center distance	600mm	600mm	600mm
Min. turning radius	3800mm	4200mm	3200mm
Max. climbing angle	≤38°	≤38°	≤38°
Min. ground clearance	380mm	380mm	350mm
Tilt of the mast,front/rear	10°/6°	10°/8°	10°/8°
Speed	45km/h	38km/h	35km/h
Max. hook traction	35Kn	35Kn	30Kn
Mast steel width	180mm	175mm	180mm
Fork length	1520mm	1220mm	1520mm
Machine weight	5500kg	5000kg	6500kg
Machine size	450019002850mm	420019202500mm	350018922300mm

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-7

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-8

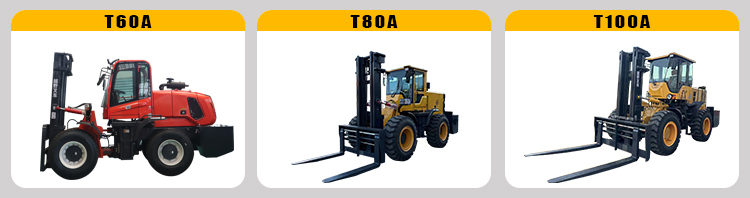

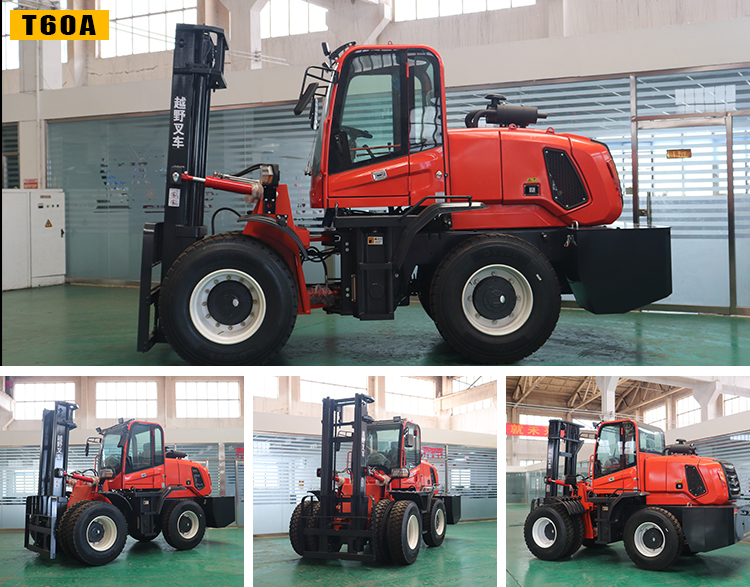

Model	T60A	T80A	T100A
Engine	Xichai/Yuchai4105，90-103kw	Yuchai4108，110kw	WeichaiWP6 6105，92kw
Drive mode	4wd	4wd	4wd
Gearbox	280 high low speed torque converter	315 high low speed torque converter	315 high low speed torque converter
Axle	Wheel reduce	Wheel reduce	30
Tire	12R22.5(4/2)	17.5-25	17.5-25
Wheelbase	2400mm	2800mm	3000mm
Rated lifting weight	6000kg	8000kg	10000kg
Rated lifting height	4000-6000mm	4000-6000mm	4000-6000mm
Load center distance	600mm	800mm	800mm
Min. turning radius	4500mm	5500mm	6500mm
Max. climbing angle	≤38°	≤38°	≤38°
Min. ground clearance	380mm	380mm	380mm
Tilt of the mast,front/rear	10°/8°	10°/8°	10°/8°
Speed	45km/h	45km/h	45km/h
Max. hook traction	35Kn	55Kn	60Kn
Mast steel width	180mm	200mm	220mm
Fork length	1520mm	1520mm	1520mm
Machine weight	6500kg	10500kg	12000kg
Machine size	460022002850mm	580022003100mm	580024003300mm

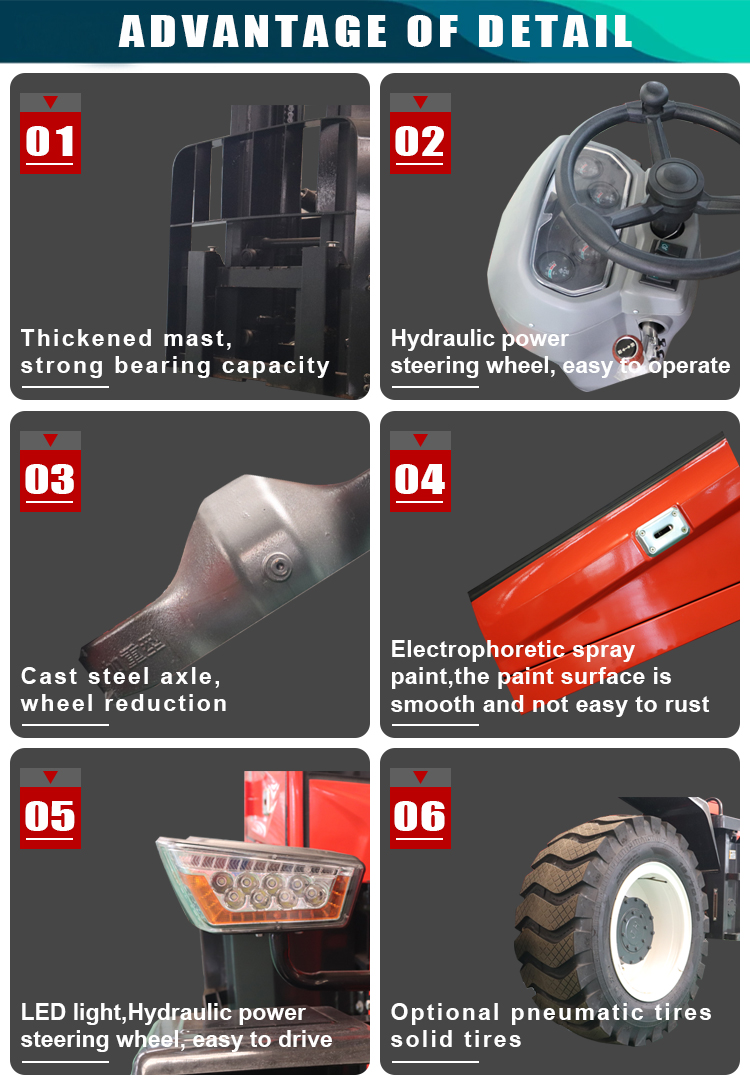

Features

1.Mechanical joystick, easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Engineering rubber tires, suitable for various road surfaces.
6.Electrophoretic spray paint, smooth and not easy to rust

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-9

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-10

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-11

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-12

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-13

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-14

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-15

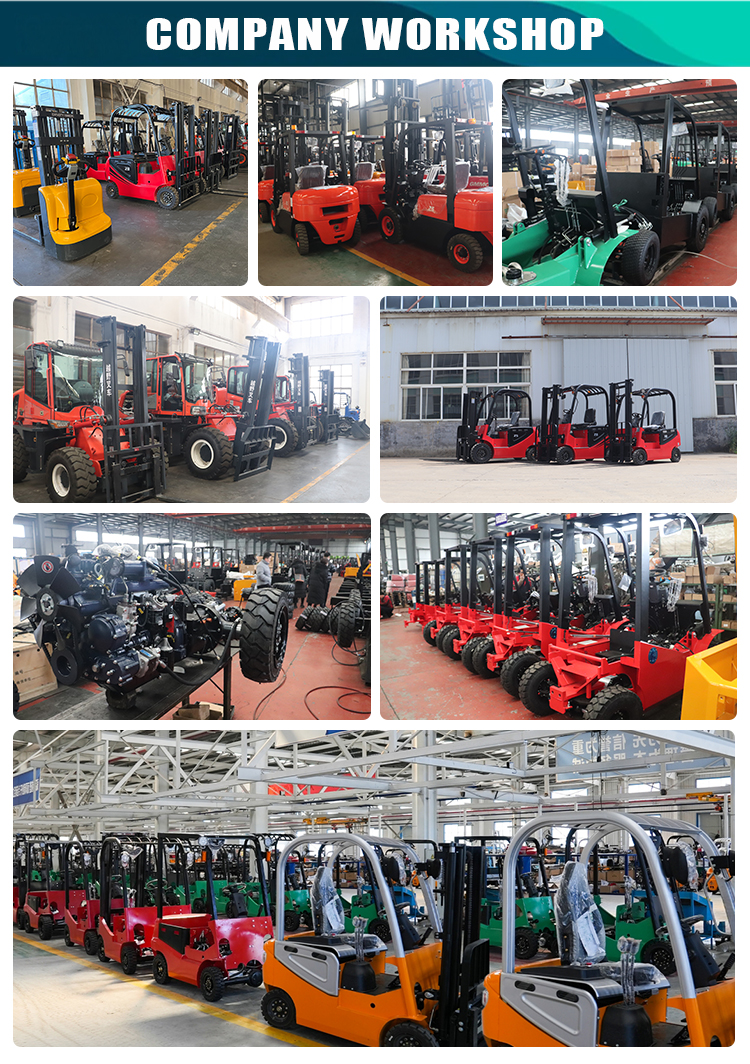

Company Profile

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-16

product mingyang 3ton 5 ton rough terrain forklfits lifting equipment 4x4 wheel drive rough terrain diesel forklift with cab-17

FAQ

Q: How long is the machine warranty time?

A: One year.

Q: Are you original manufacturer?

A: Yes. We are manufacturer of construction machines.

Q: What is the terms of payment?

A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.

Q: What is the delivery time ?

A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.

Q: How should we do if the machine broken ?

A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.

Q: How should we do if parts are broken ?

A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.

Q: Can the machine use the trademark of our own company?

A: Yes ,sir ,of course.
