As a direct manufacturer and reliable supplier of heavy-duty material handling equipment, we present the 5 Ton Off-Road Forklift designed for volume procurement and demanding industrial applications. Engineered with a robust 4x4 drive system and an enclosed cabin, this machinery ensures seamless operation across rough terrains, providing fleet operators with unmatched stability and power.
Direct-from-manufacturer sourcing tailored for large-scale industrial deployment.
5000kg lifting capacity to handle heavy materials in harsh environments.
CE and EPA Euro 5 compliant, ensuring global operational readiness.
When navigating the unpredictable surfaces of a lumber yard, a muddy construction site, or a sprawling agricultural estate, standard material handling equipment simply falls short. This 5-ton rough terrain forklift is engineered to conquer the elements, transforming daunting logistical challenges into streamlined operations. The moment the operator steps into the enclosed cabin, the steady, deep thrum of the premium diesel engine signals a readiness to tackle steep inclines and uneven grounds with unwavering stability. Every weld and joint speaks of industrial-grade craftsmanship, specifically designed to absorb the punishing vibrations of off-road transit while keeping the operator secure, comfortable, and highly focused on the task at hand.
By integrating a high-clearance chassis with deep-tread engineering tires, this machine bites into loose soil, thick mud, and gravel, delivering relentless traction where conventional forklifts would sink. The electrophoretic paint finish not only gives the exterior a sleek, professional sheen but acts as an impenetrable shield against corrosive moisture, salt, and abrasive dust encountered in daily outdoor operations. For procurement managers and fleet directors seeking reliable, long-term solutions, this forklift significantly minimizes maintenance downtime and maximizes daily throughput. It is not merely a transport vehicle; it is a heavy-duty workhorse that guarantees your materials keep moving, regardless of the weather conditions or the severity of the terrain, ensuring your operational timelines are always met with absolute precision.
| Model number : T50(Index axis) | ||
| Rated lifting weight: 5000kg | Engine model: Xichai/Yunnei4102 | |
| Rated lifting height: 4000-6000mm | Drive mode: four-wheel drive | |
| Load center distance: 600mm | Axle type: Integrated cast steel axle with large rim | |
| Minimum turning radius: 3800mm | Tire type : 16/70-24 | |
| Maximum climbing Angle:38° | Wheelbase:2400mm | |
| Minimum ground clearance: 380mm | Frame steel width: 180mm | |
| Front/back Angle of frame :10.0/6.0 | Fork length:1520mm(optional) | |
| Maximum operating speed :45km/h | Weight: 5500kg | |
| Maximum hook traction: 35.0KN | Machine size:4500/1900/2850mm | |
| Transmission model :265 double high and low speed torque converter | ||
Our engineering team has meticulously designed this rough terrain forklift to prioritize operational efficiency, operator safety, and long-term equipment survival in the most demanding industrial environments. Every component is selected to add tangible value to your daily material handling processes.

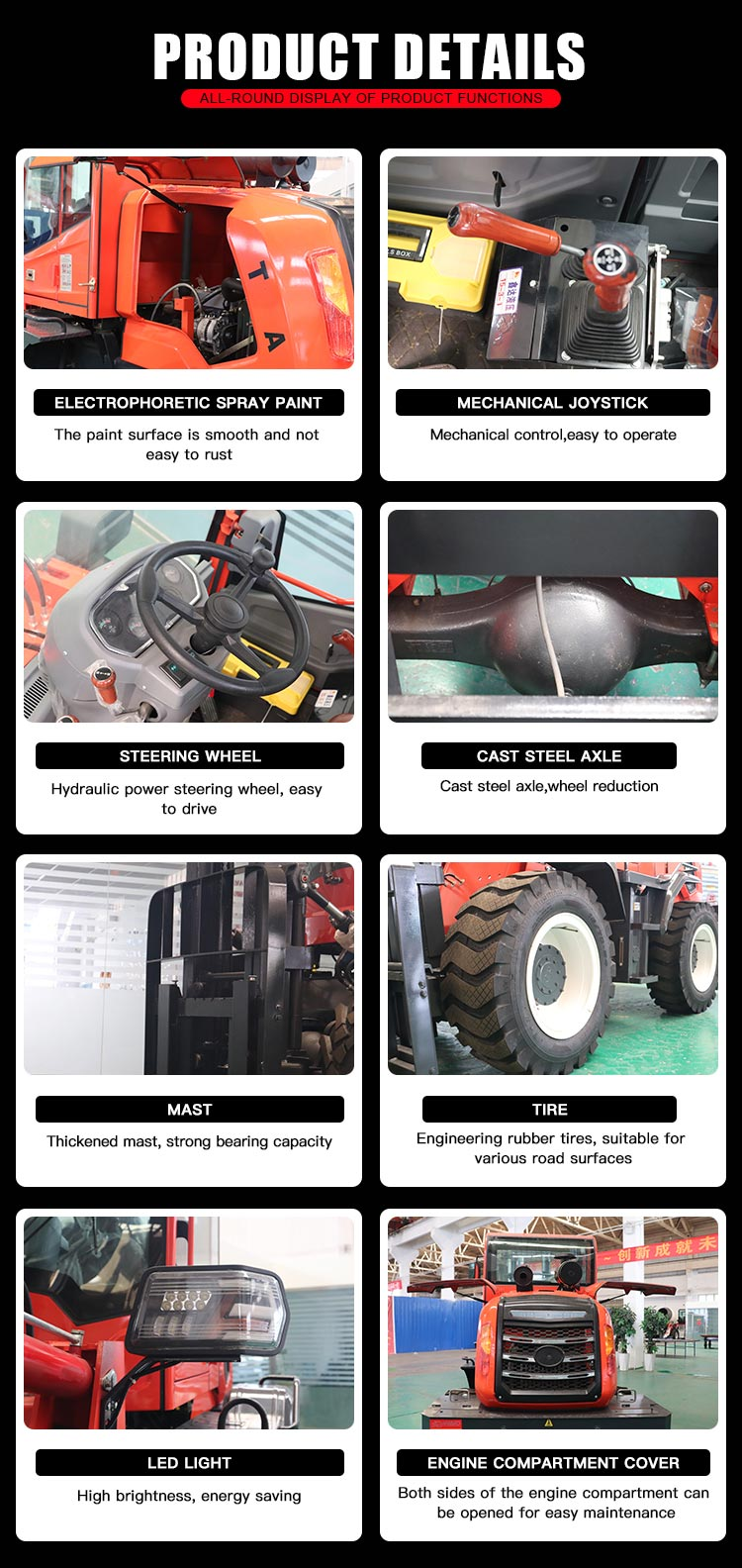

Precision Mechanical Control: The mechanical joystick provides tactile, highly responsive feedback, allowing operators to execute delicate lifting maneuvers with heavy loads effortlessly.
Heavy-Duty Load Bearing: Featuring a thickened mast structure, this machine delivers exceptional bearing capacity, eliminating mast sway when handling materials at maximum heights.
Effortless Maneuverability: The hydraulic power steering wheel significantly reduces operator fatigue, ensuring smooth and precise directional changes even when navigating tight, uneven spaces.
Superior Illumination: High-brightness, energy-saving LED lighting cuts through dense fog, heavy rain, and low-light conditions, ensuring round-the-clock operational safety.
All-Terrain Grip: Specialized engineering rubber tires feature aggressive tread patterns designed to self-clean mud and grip securely onto slippery or rocky road surfaces.
Advanced Rust Prevention: The electrophoretic spray paint process ensures a smooth, uniform coating that penetrates deep into metal crevices, drastically reducing the risk of rust and structural decay.
Reinforced Drivetrain: A solid cast steel axle combined with wheel reduction technology ensures maximum torque delivery to the ground, preventing axle snapping under extreme stress.
Accessible Maintenance: Both sides of the engine compartment can be fully opened, providing mechanics with unobstructed access to critical components, thereby speeding up routine servicing.
To truly understand the value this machinery brings to your fleet, it is essential to look at the comprehensive engineering dimensions that make it a top-tier choice for heavy industry sourcing.
Designed specifically for harsh working conditions, this forklift features a full-time four-wheel drive (4WD) system. Coupled with large-tread engineering rubber tires and a massive 380mm ground clearance, it achieves a maximum climbing angle of 38°. It effortlessly navigates through deep mud, mountainous regions, mining sites, and agricultural terrains without losing momentum.
At the heart of the machine lies the robust Xichai/Yunnei 4102 diesel engine, delivering stable and relentless power. This is perfectly mated to a 265-type double high and low-speed torque converter. This synergy generates up to 35.0KN of maximum hook traction and allows for a rapid maximum operating speed of 45km/h, ensuring heavy loads are moved swiftly across large sites.
Operator comfort directly correlates with productivity. The fully enclosed cabin protects drivers from harsh weather, dust, and noise. Standardized with a hydraulic power steering wheel and ergonomic mechanical joysticks, the operational feel is light and intuitive. The wide-view mast design, paired with high-intensity LED lights, drastically reduces visual fatigue and enhances safety during extended shifts.
Constructed from thickened, high-strength steel with a frame width of 180mm, the mast offers superior load-bearing integrity. It comfortably handles the rated 5-ton capacity, with lifting heights ranging from 4 to 6 meters. This makes it ideal for high-altitude stacking of heavy materials, with options available for two-stage or three-stage full free lift mast customizations.
The chassis is built around an integrated cast steel axle with wheel reduction, providing exceptional resistance to torsion and heavy impacts. The entire vehicle undergoes a rigorous electrophoretic painting process, resulting in a perfectly smooth finish that acts as a formidable barrier against corrosion, significantly extending the equipment's lifespan in harsh outdoor environments.
Coming standard with 1520mm forks, this machine is highly adaptable to various industrial scenarios. It can be seamlessly fitted with a wide array of attachments—such as side shifters, fork positioners, buckets, and paper roll clamps. This multi-functional adaptability allows a single machine to serve diverse needs across forestry, construction, and heavy manufacturing.
Downtime is a critical metric for any operation. We designed the engine compartment to open widely on both sides, making daily fluid checks and filter replacements incredibly fast. Backed by a 1-year core warranty, dedicated video technical support, and rapid production times (3-5 days generally, or 2 days for urgent dispatch to the port), we minimize your procurement risks and keep your operations running smoothly.
Selecting the right manufacturing partner is just as critical as selecting the right equipment. We pride ourselves on delivering not just machinery, but comprehensive material handling solutions tailored for global volume buyers and industrial fleet managers.
Direct Manufacturer Advantage: By sourcing directly from our state-of-the-art production facility, you bypass intermediaries, ensuring highly competitive pricing and direct communication with the engineers who build your machines.
Strict Quality Control: Every forklift undergoes rigorous stress testing, hydraulic pressure checks, and terrain simulations before leaving our factory floor, ensuring out-of-the-box reliability.
Global Export Expertise: With years of experience shipping heavy machinery worldwide, we handle complex logistics, customs documentation, and secure container loading to ensure your equipment arrives in pristine condition.
Certified Excellence: Our manufacturing processes and products are backed by international certifications, reflecting our commitment to safety, environmental standards (EPA/Euro 5), and consistent quality.
We believe in building long-term partnerships. Our dedicated support team is always ready to assist with technical inquiries, spare parts dispatch, and fleet expansion planning, ensuring you have a reliable backbone for your heavy operations.
A: We provide a comprehensive one-year warranty on the core components of the machine. During this period, we stand firmly behind the quality and durability of our manufacturing.
A: Yes, we are the direct manufacturer of these construction and material handling machines. This allows us to maintain strict quality control and offer highly competitive pricing for volume procurement.
A: Normally, we operate on a structured payment schedule: a 30% advance payment to initiate production, with the remaining 70% balance to be paid after the machine is finished and inspected. We also accept L/C at sight for established buyers.
A: Generally, we require 3-5 days to produce and prepare the machine after receiving the prepayment. If your project timeline is urgent, we can expedite the process to 2 days before sending the equipment to the departure port.
A: In the event of a malfunction, simply record a clear video of the issue. Our expert technicians will promptly analyze the video to diagnose the root cause and provide step-by-step troubleshooting guidance.
A: We strongly advise our clients to procure a set of conventional wear-and-tear accessories alongside their initial order, tailored to their specific country and operating environment. If other critical parts fail, we will swiftly dispatch replacements via sea or air freight to minimize your downtime.
A: Absolutely. We offer comprehensive OEM services and can proudly apply your company's branding, colors, and trademarks to the machinery to align with your corporate fleet identity.
