| Quantity: | |
|---|---|
As a premier manufacturer and supplier of heavy-duty construction machinery, we proudly present our high-performance mini skid steer loader. Engineered for maximum versatility and rugged durability, this compact powerhouse seamlessly integrates robust lifting capabilities with agile maneuverability. Designed to meet the rigorous demands of volume purchasers and commercial fleet operators, our loaders deliver unmatched efficiency across diverse worksites. By prioritizing precision engineering and consistent output, we provide a reliable solution that elevates your operational capabilities.
Multifunctional integrated machinery for diverse applications
Thickened steel construction for enhanced structural integrity
Premium hydraulic systems ensuring smooth operation
Comprehensive customization options to suit specific project needs
Step onto the job site with a machine that commands immediate respect through its sheer physical presence and meticulous craftsmanship. From the first moment you run your hands along the heavy-gauge, thickened steel chassis, you can feel the unyielding industrial strength designed to withstand the harshest environments. The exterior features a premium, corrosion-resistant powder coating that not only looks professional but feels smooth and resilient to the touch, shrugging off the inevitable scrapes and impacts of daily heavy-duty use. When you turn the ignition, the deep, steady, and rhythmic rumble of the advanced engine fills the air—a sound that communicates raw power and unwavering reliability without the deafening clatter of inferior machinery.
Operationally, this mini skid steer loader transforms grueling, labor-intensive tasks into a seamless, almost effortless experience. As you engage the controls, the tactile feedback from the ergonomic joysticks is immediate and precise. The hydraulic arms raise and lower with a smooth, frictionless whisper, devoid of the jerky, unpredictable movements that plague lesser equipment. You can physically feel the stability of the machine as the high-traction rubber tracks bite firmly into loose gravel, thick mud, or uneven terrain, grounding the loader and preventing any unsettling slippage. This equipment is not just a tool; it is a meticulously engineered extension of the operator, designed to solve the chronic problems of labor shortages and tight-space navigation, ultimately ensuring that your projects are completed ahead of schedule and with unparalleled precision.

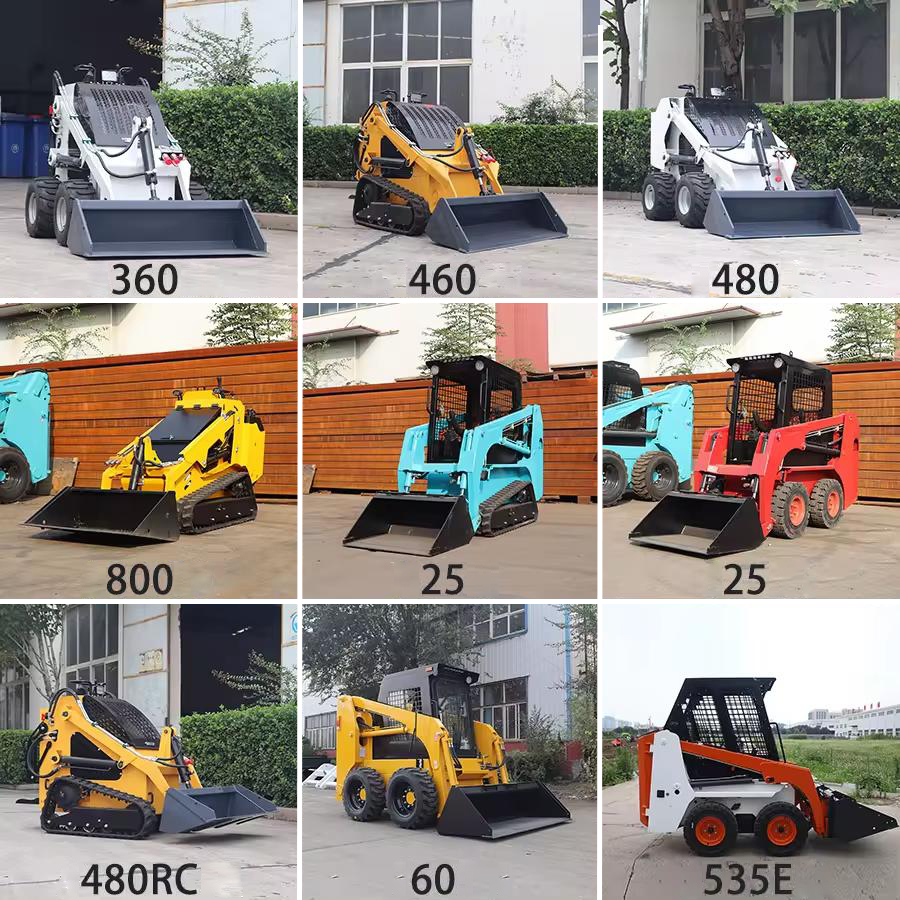

| Model | 360 | 460 |
| Engine | Koop/Briggs & Stratton | Koop/Honda/Loncin/Rato/Briggs & Stratton |
| Rated power | 13.5Kw | 15-18kw |
| Calibration speed | 3000rpm | 3600rpm |
| Cylinder | Single | Double |
| Displacement | 420cc | 639cc |
| Emission Standard | Euro 5/EPA | Euro 5/EPA |
| Rated load | 200kg | 300kg |
| Bucket volume | 0.12m³ | 0.12m³ |
| Walking speed | 0-6km/h | 0-6km/h |
Our engineering team has meticulously designed every aspect of this machinery to ensure it stands as a pinnacle of performance in the heavy equipment sector. We understand that commercial operators require more than just basic functionality; they need a comprehensive solution that actively drives productivity, reduces downtime, and adapts to the ever-changing demands of modern construction and landscaping projects. By focusing on the intersection of raw power, intelligent design, and operator comfort, we have created a loader that not only meets but exceeds the stringent expectations of industry professionals. Explore the distinct advantages that set our equipment apart from conventional alternatives.
Engineered for continuous, high-intensity operations without thermal degradation.
Designed to minimize maintenance intervals, keeping your fleet active and profitable.
Built with premium, globally sourced components to ensure long-term reliability.
At the heart of our skid steer loader lies a meticulously selected, internationally recognized engine. You can choose from industry titans such as Briggs & Stratton, Honda, Loncin, Rato, or Cummins, offering both gasoline and diesel configurations to match your specific fuel infrastructure. Beyond raw horsepower (ranging from 8.6kW to 36.8kW), these engines are strictly calibrated to meet Euro 5 and US EPA emission standards. This is not merely an environmental badge; it is a critical business advantage. By ensuring absolute compliance, we eliminate the bureaucratic friction of customs clearance in strict European and North American markets, allowing procurement specialists to deploy fleets without the looming threat of regulatory fines or operational bans.
Broad spectrum of rated power options (8.6kW to 36.8kW) to perfectly match your lifting requirements.
Seamless international deployment guaranteed by strict adherence to Euro 5 and EPA emissions protocols.
Dual fuel options (gasoline and diesel) provide ultimate flexibility for diverse fleet management strategies.
Significantly reduced exhaust odors and quieter operation, enhancing the working environment for on-site personnel.
| Model | 390 | 490T |
| Engine | RATO R440/KOOP 192 | RATO R740/KOOP 292 |
| Engine Power | 9.7kw/8.6kw | 16.8kw/17kw |
| Rated Load | 250kg | 250kg |
| Bucket Capacity | 0.12m³ | 0.12m³ |
| Dumping Height | 1376mm | 1402mm |
| Gradeability | 30° | 30° |
| Travel Speed | 0-5km/h | 0-3km/h |
| Overall Dimension | 2281*1050*1873mm | 2535*1055*1896mm |
Maximizing the return on investment is the cornerstone of effective fleet management. Our loader is engineered with a universal quick-hitch front attachment system that fundamentally redefines the concept of "one machine for multiple jobs." Listen for the satisfying, secure metallic click as you effortlessly swap out the standard bucket for a trencher, rotary plow, snow blower, breaker hammer, or forklift tines in a matter of minutes. This transformative capability allows a single operator to transition from agricultural tilling in the morning to municipal snow clearing in the afternoon. By consolidating multiple specialized functions into one highly adaptable platform, project managers can drastically reduce their overall equipment acquisition costs and simplify site logistics.
Rapid attachment switching minimizes operational downtime and maximizes daily productivity.
Replaces the need for multiple single-purpose machines, drastically cutting capital expenditure.
Perfectly suited for diverse sectors including agriculture, landscaping, municipal maintenance, and heavy construction.
Robust attachment locking mechanism ensures absolute safety and stability during high-torque operations.
Space is a premium on modern job sites, and our loader is sculpted to conquer the tightest confines. The ultra-compact footprint, combined with an exceptional zero-turn radius capability, allows the machine to pivot flawlessly on its own axis. Whether you are navigating narrow urban alleyways, dense orchard rows, or crowded indoor demolition sites, this loader moves with surgical precision. Furthermore, buyers can select between heavy-duty rubber tires or high-traction rubber tracks. The tracked configuration is specifically engineered to distribute the machine's weight, significantly lowering ground pressure. This allows the loader to glide over muddy, sandy, or heavily rutted terrain without bogging down or damaging delicate landscapes.
True zero-turn radius allows for unparalleled maneuverability in severely restricted spaces.
Choice of wheeled or tracked chassis to perfectly align with your specific terrain challenges.
Tracked models provide superior flotation on soft ground, preventing disruptive site damage.
Maintains a low center of gravity, ensuring exceptional stability even on 30° inclines.
| Model | 800 | Foot pedal clearance | 270mm |
| Machine weight without attachment | 1069kg | Height to bucket hinge pin | 2160mm |
| Bucket weight | 80kg | Height of machine | 1400mm |
| Tipping load | 416kg | Without bucket length | 2160mm |
| Track width | 200mm | Overall length with bucket | 2830mm |
| Ground pressure | 0.261 | Overall operating height | 2800mm |
| Max Speed | 5.6km/h | Rollback o bucket on ground | 39° |
| Angle of departure | 28° | Rollback of bucket at full height | 69° |
| Minimum height of bucket pin from ground | 163mm | Tread width | 1150mm |
| Dumping angle at maximum height | 30° | Front turning radius without bucket | 1495mm |
| Dumping height | 1685mm | Width | 1006mm |
| Dumping reach | 610mm | Track gauge | 830mm |
| Ground clearance | 258mm | Bucket width | 1235mm |
The lifeblood of any heavy machinery is its hydraulic system, and ours is engineered for relentless, fluid power. We utilize a sophisticated dual-pump hydraulic architecture that guarantees a consistent, surge-free flow of power to both the drive system and the lifting arms simultaneously. You will notice the difference in the smooth, stutter-free lifting of heavy loads (up to 890kg). Crucially, we have integrated a high-capacity hydraulic oil cooler as a standard feature. Place your hand near the chassis after hours of rigorous trenching; you will feel the heat being efficiently dissipated. This prevents the thermal bottlenecking and oil degradation that typically cause mid-shift breakdowns, ensuring your project timeline never suffers from equipment fatigue.
Dual-pump system enables simultaneous driving and lifting without power loss.
Integrated oil cooler maintains optimal operating temperatures during grueling, continuous shifts.
Smooth, predictable hydraulic response reduces operator fatigue and increases load-handling precision.
High-pressure hoses and reinforced fittings prevent leaks and ensure long-term system integrity.
| Model | 55 | Engine power | 36.8kw |
| Rated load | 890Kg | Maximum operating height | 3790mm |
| Overturning load | ≥1780Kg | Bucket pin height | 3020mm |
| Operation quality | 2880±3％Kg | Wheelbase | 1079mm |
| Largest traction | ≥25KN | Bucket capacity | 0.4m³ |
| Maximum digging force | ≥25KN | Diesel tank capacity | 80L |
| Maximum lifting force | 1780Kg | Speed | 12Km/h |
We believe that operator safety and equipment reliability are non-negotiable. Every unit that rolls off our production line is subjected to a battery of rigorous pre-factory testing, ensuring it meets exacting international standards, proudly bearing CE and ISO certifications. The physical design prioritizes the operator's well-being, featuring heavy-duty steel guardrails that offer a secure, protective envelope without obstructing visibility. For operations that extend into the dusk or take place in dimly lit environments, the machine is equipped with piercingly bright, energy-saving LED work lights. These lights cut through the darkness, casting a crisp, clear illumination over the work area, drastically reducing the risk of accidents and enhancing overall site safety.
Internationally recognized CE and ISO certifications guarantee top-tier manufacturing quality.
Reinforced operator guardrails provide critical protection against falling debris and impacts.
High-intensity LED lighting ensures safe, productive operation during night shifts or in poor weather.
Comprehensive pre-delivery testing protocols eliminate out-of-the-box failures.
Selecting the right manufacturing partner is a critical decision that impacts your bottom line for years to come. We distinguish ourselves not just as assemblers of metal, but as dedicated architects of your operational success. Our sprawling, state-of-the-art manufacturing facility is optimized for precision and scale, ensuring that whether you order a single unit or an entire fleet, the quality remains impeccably consistent. We bridge the gap between premium quality and economic viability, offering equipment that boasts a long, productive lifespan without the inflated price tags of legacy brands. By choosing us, you are securing a direct pipeline to innovative engineering, transparent communication, and a team that is genuinely invested in ensuring your construction timelines are met with absolute certainty.
Direct-from-manufacturer pricing structure ensures maximum profitability for your procurement budget.
Unwavering commitment to quality, evidenced by our rigorous, multi-stage pre-factory testing.
Highly responsive customer service team ready to assist with technical queries and logistical planning.
Proven track record of supplying robust, reliable machinery to demanding markets worldwide.
Q: What is the exact duration of the machine's warranty, and what does it cover?
A: We provide a comprehensive one-year warranty that covers the entire machine, including all core components such as the engine and hydraulic pumps. Additionally, we offer extended after-sales service support ranging from 1 to 3 years to ensure your equipment remains in peak condition.
Q: Can you confirm if you are a direct manufacturer or a third-party trading company?
A: Yes, we are a direct, fully integrated manufacturer of construction machinery. This allows us to maintain strict quality control over every step of the production process and offer highly competitive pricing directly to our commercial clients.
Q: How is the payment structure organized for large equipment orders?
A: To alleviate financial pressure while securing your production timeline, our standard payment terms are 30% T/T (Telegraphic Transfer) in advance as a deposit, with the remaining 70% T/T balance paid only after the equipment is fully produced and ready for shipping.
Q: What is the expected delivery timeframe once an order is confirmed?
A: Thanks to our agile manufacturing processes and optimized supply chain, we boast an exceptionally fast delivery time of just 3 to 7 days, ensuring your projects experience minimal delays.
Q: What is the protocol if the machine experiences an unexpected breakdown on site?
A: We utilize a highly efficient remote diagnostic system. Simply record a video of the machine's behavior and any unusual sounds. Our expert technicians will immediately analyze the video to pinpoint the exact cause of the problem and provide step-by-step resolution guidance.
Q: How do you handle the replacement of broken or worn-out parts?
A: We proactively advise our clients to purchase a tailored set of conventional accessories based on their specific operating environment. Should a non-stocked part break, we will immediately dispatch the replacement component via expedited air or sea freight to minimize your downtime.
Q: Are we able to apply our own corporate branding and colors to the machinery?
A: Absolutely. We offer extensive OEM and ODM services. You can fully customize the machine with your own company's trademark, logos, and specific paint colors to seamlessly integrate the equipment into your existing branded fleet.
