Selecting the right manufacturing partner is a critical decision that directly impacts your bottom line. We stand apart in the heavy machinery sector by combining engineering excellence with an unwavering commitment to client success. Our advanced production facilities and stringent quality control protocols ensure that every loader that leaves our floor is a masterpiece of reliability and power.
Proven Industry Expertise: Years of dedicated research and development in construction machinery have refined our manufacturing processes to absolute perfection.
Global Certification: Our products are backed by ISO, CE, and EPA certifications, reflecting our strict adherence to the highest international quality and safety standards.
Responsive Technical Support: Our expert engineering team provides rapid video diagnostics and troubleshooting, ensuring minimal downtime for your end-users.
Comprehensive Supply Chain: From raw material sourcing to final container loading, we maintain complete control over the production lifecycle, guaranteeing consistency and excellence in every batch.
Exceptional Client Satisfaction: We pride ourselves on building long-term relationships, consistently receiving top-tier evaluations for our machinery's performance and our attentive after-sales servic
Embrace the future of sustainable construction with our forward-thinking, eco-friendly configurations. As the industry rapidly shifts towards greener practices, our electric-ready designs position your operations at the forefront of environmental responsibility.
Zero Emissions: Ideal for indoor demolition, basement excavations, and poorly ventilated environments where exhaust fumes pose a severe hazard.
Whisper-Quiet Operation: Significantly reduces noise pollution, allowing for extended working hours in residential neighborhoods and noise-sensitive zones.
Advanced Battery Technology: Compatible with high-capacity battery systems for sustained, reliable energy output throughout the workday.
As a premier manufacturer and supplier of heavy-duty construction machinery, we present our high-performance mini skid steer loader. Engineered for maximum efficiency and durability, this compact powerhouse is designed to elevate your operational capabilities and streamline your procurement process.
Factory-direct sourcing ensuring significant cost advantages and scalable supply.
Robust, thickened steel construction tailored for rigorous, continuous daily usage.
Comprehensive support framework designed specifically for large-scale project deployments and distribution networks.
| Model | 360 | 460 |
| Engine | Koop/Briggs & Stratton | Koop/Honda/Loncin/Rato/Briggs & Stratton |
| Rated power | 13.5Kw | 15-18kw |
| Calibration speed | 3000rpm | 3600rpm |
| Cylinder | Single | Double |
| Displacement | 420cc | 639cc |
| Emission Standard | Euro 5/EPA | Euro 5/EPA |
| Rated load | 200kg | 300kg |
| Bucket volume | 0.12m³ | 0.12m³ |
| Walking speed | 0-6km/h | 0-6km/h |
Our mini skid steer loader is engineered to deliver exceptional value, combining cutting-edge technology with rugged practicality. It is specifically designed to solve complex logistical and operational challenges on the job site, ensuring your operations remain highly profitable.
Unmatched Versatility: Seamlessly transition between tasks, reducing the need for multiple specialized machines and optimizing your equipment footprint.
Heavy-Duty Hydraulics: Experience smooth, uninterrupted lifting and digging power, ensuring consistent productivity even under maximum load conditions.
Compact Footprint: Designed to access confined spaces where traditional heavy machinery simply cannot reach, unlocking new project possibilities.
Ergonomic Operation: Intuitive controls drastically reduce operator fatigue, promoting longer, safer, and inherently more productive work shifts.
Rapid Deployment: With swift delivery schedules, your equipment arrives ready to work, minimizing costly project delays and keeping timelines intact.
| Model | 390 | 490T |
| Engine | RATO R440/KOOP 192 | RATO R740/KOOP 292 |
| Engine Power | 9.7kw/8.6kw | 16.8kw/17kw |
| Rated Load | 250kg | 250kg |
| Bucket Capacity | 0.12m³ | 0.12m³ |
| Dumping Height | 1376mm | 1402mm |
| Gradeability | 30° | 30° |
| Travel Speed | 0-5km/h | 0-3km/h |
| Overall Dimension | 2281*1050*1873mm | 2535*1055*1896mm |
| Model | 800 | Foot pedal clearance | 270mm |
| Machine weight without attachment | 1069kg | Height to bucket hinge pin | 2160mm |
| Bucket weight | 80kg | Height of machine | 1400mm |
| Tipping load | 416kg | Without bucket length | 2160mm |
| Track width | 200mm | Overall length with bucket | 2830mm |
| Ground pressure | 0.261 | Overall operating height | 2800mm |
| Max Speed | 5.6km/h | Rollback o bucket on ground | 39° |
| Angle of departure | 28° | Rollback of bucket at full height | 69° |
| Minimum height of bucket pin from ground | 163mm | Tread width | 1150mm |
| Dumping angle at maximum height | 30° | Front turning radius without bucket | 1495mm |
| Dumping height | 1685mm | Width | 1006mm |
| Dumping reach | 610mm | Track gauge | 830mm |
| Ground clearance | 258mm | Bucket width | 1235mm |
| Model | 55 | Engine power | 36.8kw |
| Rated load | 890Kg | Maximum operating height | 3790mm |
| Overturning load | ≥1780Kg | Bucket pin height | 3020mm |
| Operation quality | 2880±3％Kg | Wheelbase | 1079mm |
| Largest traction | ≥25KN | Bucket capacity | 0.4m³ |
| Maximum digging force | ≥25KN | Diesel tank capacity | 80L |
| Maximum lifting force | 1780Kg | Speed | 12Km/h |
We understand that purchasing heavy machinery requires careful consideration. Below are detailed answers to the most common technical and operational questions posed by our professional clients.

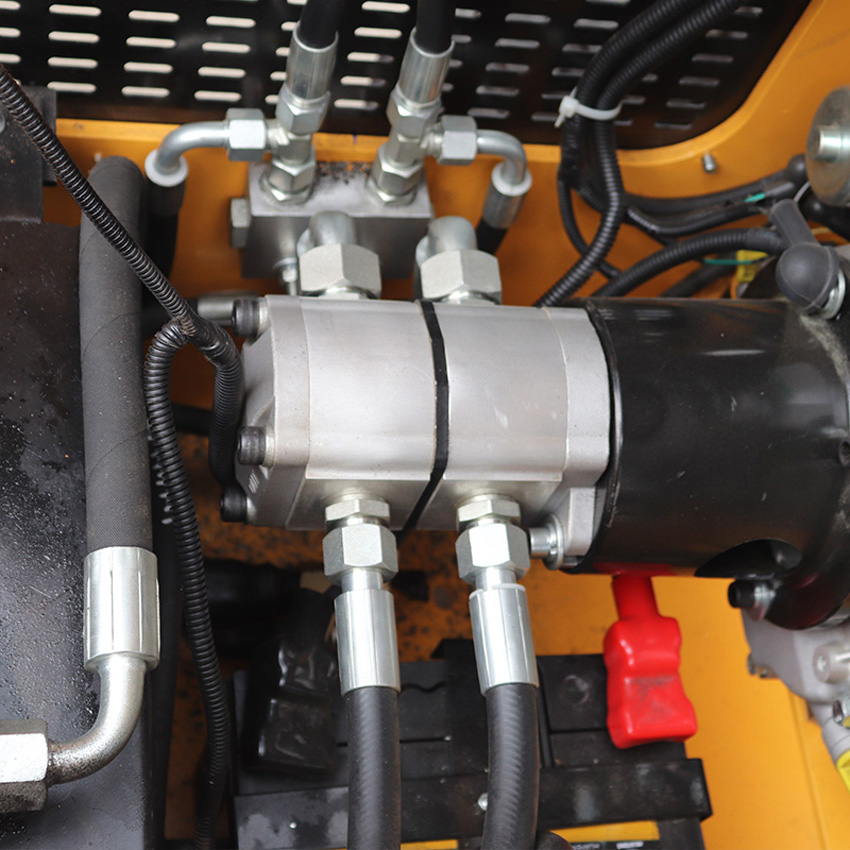

Q: How does the dual pump system enhance the loader's operational efficiency?
A: The dual pump system separates the hydraulic fluid flow for the drive mechanism and the working arm. This critical design ensures that lifting heavy loads does not compromise the machine's travel speed or steering responsiveness, allowing for exceptionally smooth, simultaneous operations.
Q: What measures are in place to ensure the machine operates reliably in extreme temperatures?
A: Our loaders are equipped with a high-capacity oil cooler that actively dissipates heat from the hydraulic fluid. This prevents the system from overheating during prolonged use in hot climates, maintaining optimal fluid viscosity and consistent hydraulic pressure.
Q: Can the tracks be easily replaced or adjusted in the field?
A: Yes, the undercarriage is purposefully designed for straightforward maintenance. The track tension can be adjusted quickly using a standard grease gun, and the rubber tracks can be swapped out efficiently with basic tools, drastically minimizing operational downtime on the job site.
Q: What is the process for implementing OEM branding on bulk orders?
A: We offer comprehensive OEM/ODM services tailored to your needs. Upon providing your brand guidelines and color codes (RAL/Pantone), our factory will apply custom industrial-grade paint and durable decals during the final assembly phase, ensuring a highly professional, factory-finished look that represents your brand perfectly.
Q: How do you handle spare parts and technical support for international clients?
A: We maintain a robust, ready-to-ship inventory of conventional wear parts. In the rare event of a breakdown, our technicians provide immediate video-based diagnostics. Required replacement parts are swiftly dispatched via air or sea freight, depending on your urgency, and the machine comes fully backed by a standard one-year warranty.
